  4. 542S CM

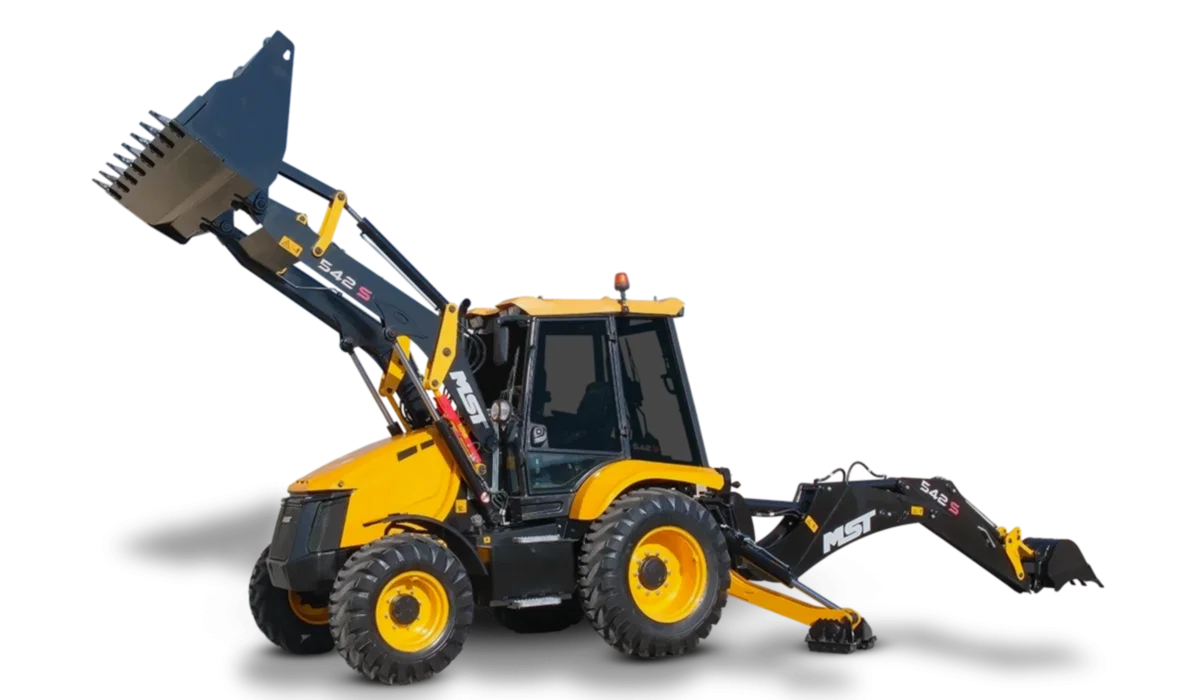

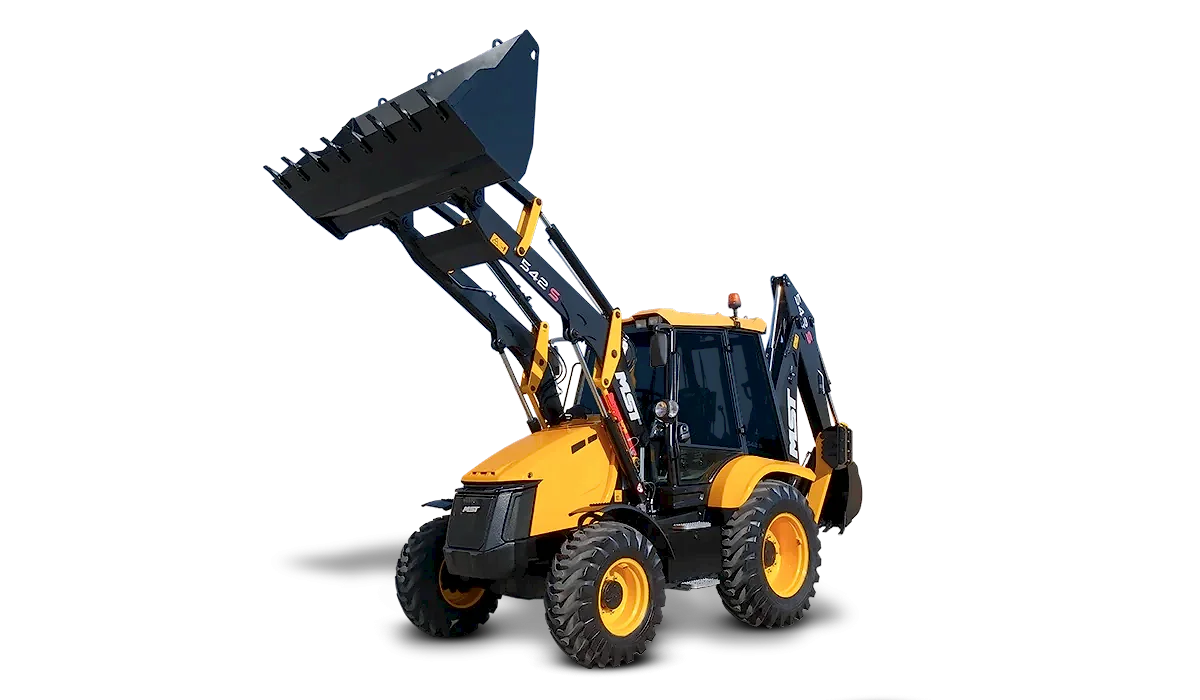

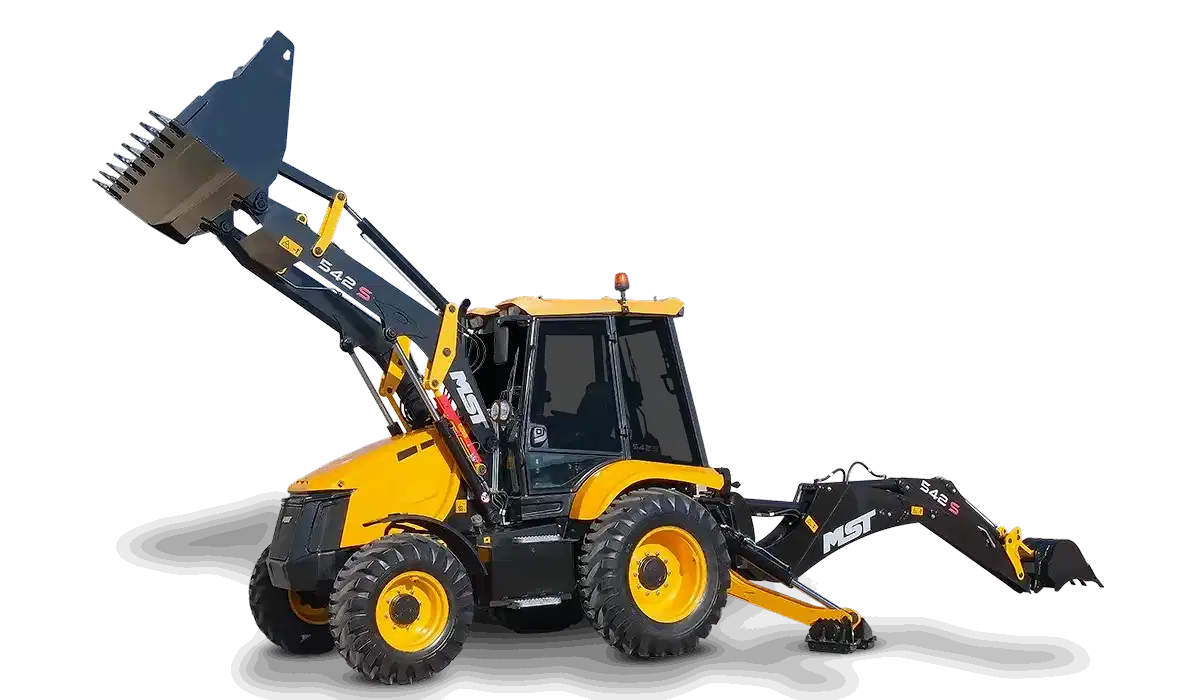

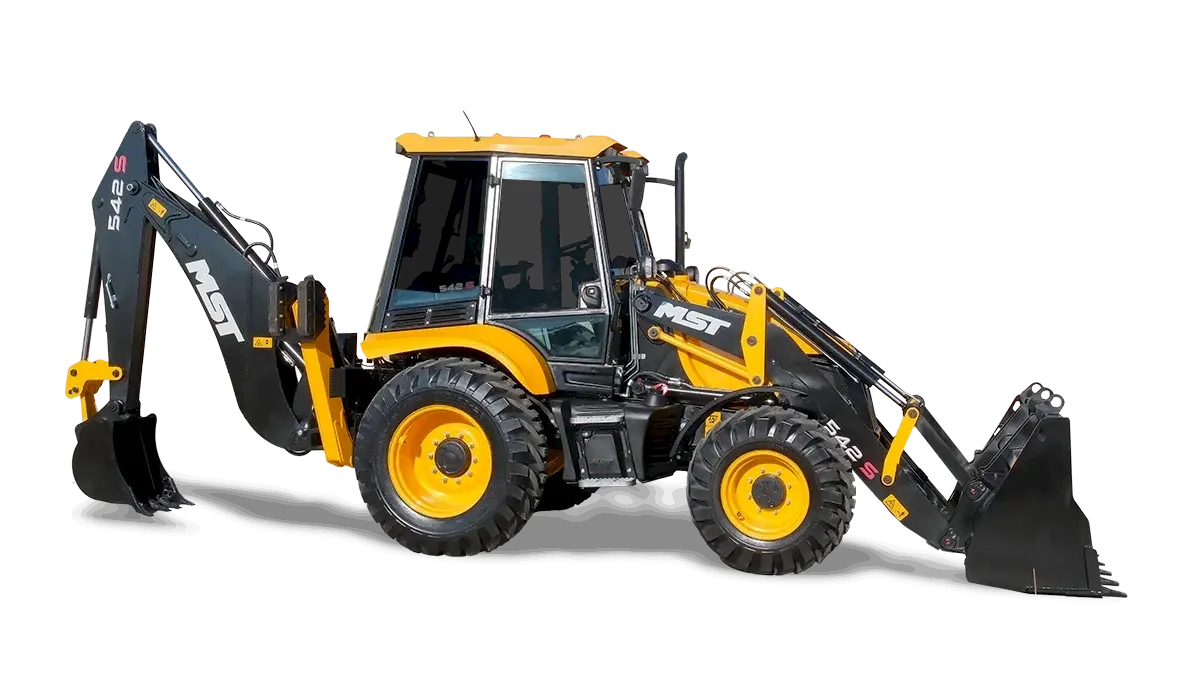

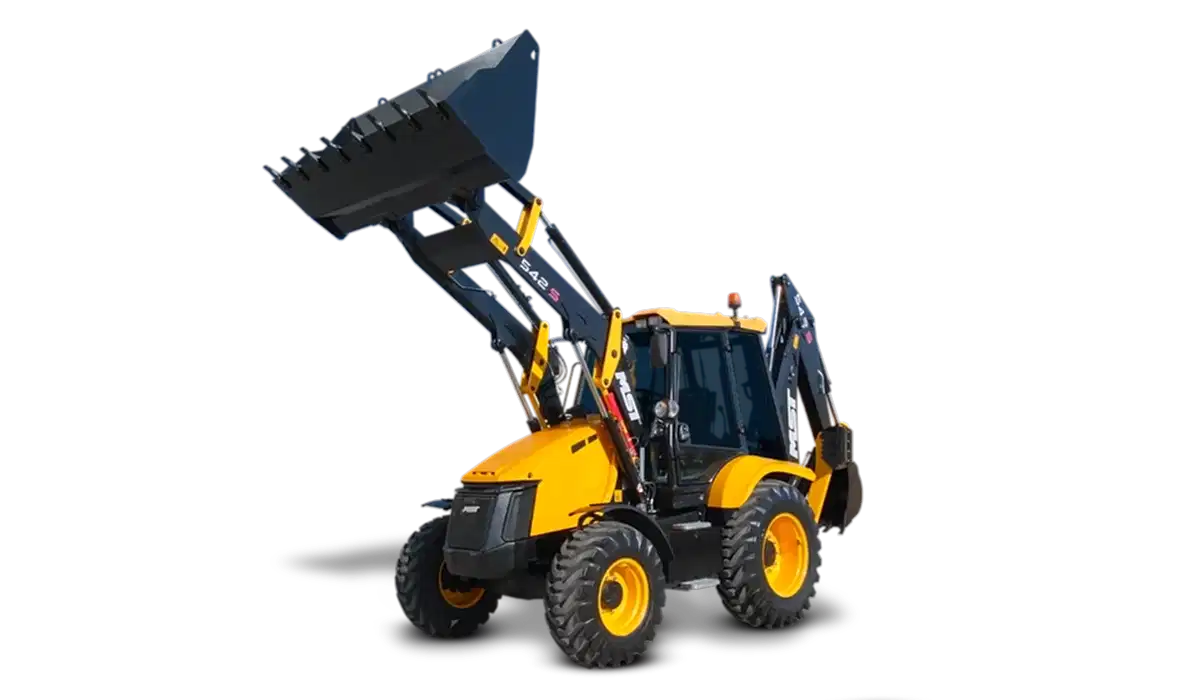

542-CM-backhoe-loader

TECHNICAL INFORMATION
QR Code
Engine Perkins
Power 100 HP (74.5 kW)
Engine Volume 4400 cc
Bucket Breakout Force 7734 kgf
Tip Bucket Capacity 1.1 m³
Operating Weight 9.300 kg

Strength Redefined, Comfort Enhanced

The MST 542S CM stands out with its optimized frame width and well-balanced structure, ensuring exceptional stability in every operation. Its precisely calibrated bucket angles enhance control and efficiency, while the ergonomic design and advanced maneuverability provide seamless handling, making it the ultimate solution for demanding work environments.

ENGINE
BrandPERKINS
Model1104C-44T
TypeDiesel
Number of Cylinders4
Bore & Strokeø 105mm x 127mm
Displacement4400 cc
Maximum Power100 HP (74.5 kW) @ 2200 rpm
Maks. Torque408Nm (1400 @ rpm)
Emission ClassEU Stage II/U.S. EPA Tier 2
TRANSMISSION
Heavy duty Powershift transmission
4 forward 4 reverse gears
Maximum travel speed 40 km/h
Hydraulic steering wheel system
Electrically controlled 2 wheel drive or 4 wheel drive
Torque converter with 2.64:1 stall ratio
Transmission oil cooler
AXLES
Heavy duty axles
Total 16° oscillation on the front axle
2 wheel drive or 4 wheel drive
Outboard planetary reduction
Differential lock on the rear axles
HYDRAULIC SYSTEM
TypeGear-type PumpPiston-type Pump
Total Flow Rate145 L/min @ 2200 rpm162.8 L/min @2200 rpm
Pressure240 bar240 bar
* Highly efficient tandem gear pump open centre hydraulic system (standard)
* Closed centre hydraulic system with optional variable flow rate piston pump and renewable flowsharing valves
WEIGHT
Operating Weight8.540 kg (Telescopic Arm) / 8.240 kg (Std. Arm)
BRAKES
Service BrakeRear axle input: Oil bath hydraulically controlled self adjusted multi-disc brakes; double brake pedal acting individually on the right and the wheels
Parking BrakeHand-lever controlled mechanical brake acting on rear axle differential
FILLING CAPACITIES
Engine Oil8.5 L
Engine Cooling System Tier 222 L
Fuel Tank140 L
Transmission Oil22 L
Hydraulic Oil Tank ~ Total System62 L ~ 145 L
ELECTRICAL SYSTEM
Voltage12 V
Battery165 amp/h heavy duty
Alternator120 A
TYRES
Front Tyres405/70-20" 12PR
Rear Tyres16.9-28" 14PR
LOADER PERFORMANCE
Tip Bucket Capacity1.1 m³
Bucket Breakout Force7734 kgf
Arm Breakout Force5905 kgf
Lift Capacity at Maximum Height3200 kg
BACKHOE PERFORMANCETB ( Extended )TB ( Retracted )
Backhoe Bucket Capacity0.17 m³0.17 m³
Bucket Breakout Force6424 kgf6424 kgf
Arm Breakout Force2506 kgf3461 kgf
