Engine PERKINS 904J-E36TA @ Commonrail
Displacement 3621 ccm
No. Of Cylinders 4
Torque Rating 430Nm@1500rpm
Steering Modes 2 WS, 4WS, 4WS-Crab
Emission Stage 5

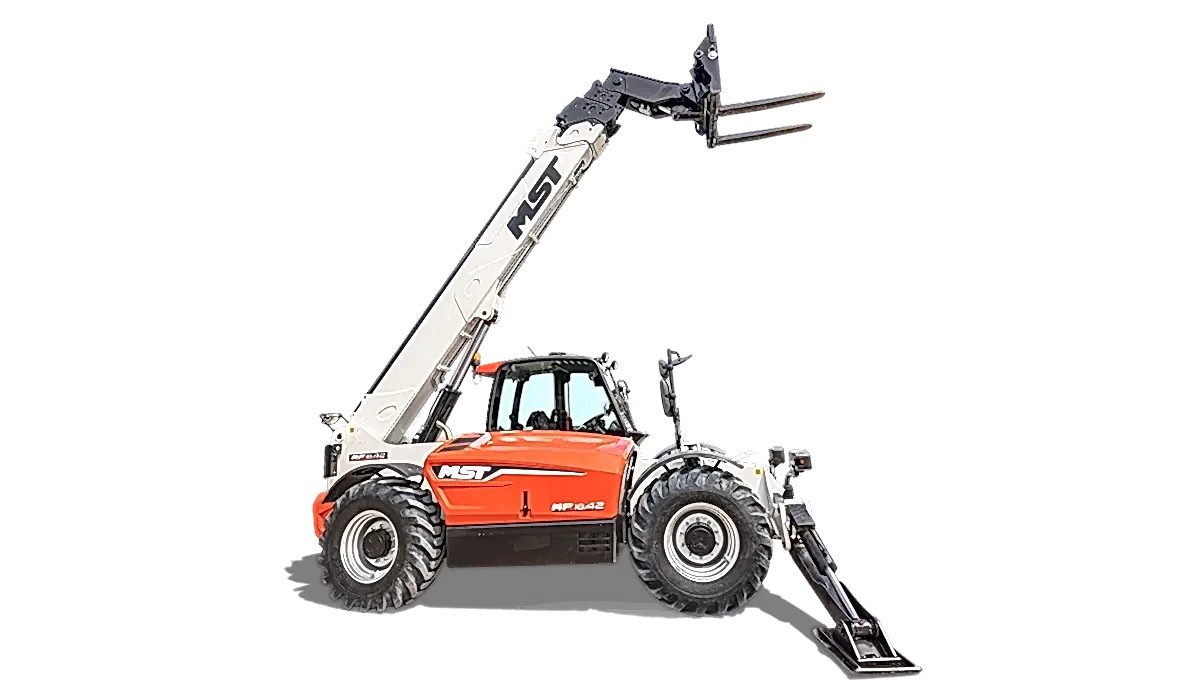

MST Telescobic Forklift consisting of advanced technology and world-recognised components.
| ENGINE | |
| Brand & Model | PERKINS 904J-E36TA @ Commonrail |
| Emission | Stage 5 |
| No. Of Cylinders | 4 |
| Displacement | 3621 ccm |
| Power Rating | 100 hp / 74,4 kW@2300rpm |
| Torque Rating | 430Nm@1500rpm |
| Aspiration | Commonrail with direct injection @ Turbocharged aftercooler |
| Cooling | Water cooled |
| TRANSMISSION | |
| Transmission Type | Powershift with tork convertor |
| Gearbox Speed (Fwd/Rvs) | 4 / 3 |
| Max. Travelling Speed | 29 km/h |
| Steering Modes | 2 WS, 4WS, 4WS-Crab |
| HYDRAULIC SYSTEM | |
| Hydraulic Pump | Load sensing type variable piston pump |
| Main Control Valve | Electro-hydraulic control |
| Max. Flow | 140 l/min |
| System Pressure | 250 bar |
| Joystick Control | 7 in 1 @ FNR & Gear up-down shift |
| FLUID CAPACITIES | |
| Fuel Tank | 130 l |
| Hydraulic Tank | 160 l |
| Standart Machine Operating Weight | 12.800kg |
| CYCLE TIMES | |
| Lifting | 15.00 sec |
| Lowering | 13.00 sec |
| Extension | 21.30 sec |
| Retraction | 15.70 sec |
| Crowd | 3.80 sec |
| Dump | 3.80 sec |
| AXLES, BRAKE SYSTEM and TYRES | |
| Axles | LSD type front axle with transverse levelling ( ±10°) control in the cab & LSD type swinging rear axle |
| Brake System | Front / Rear multi-disc type oil bath |
| Parking Emergency Brake | Negative parking brake (SAHR) |
| Tyres | 405/80-24 |
| NOISE | |
| Noise at Driving Position LpA* | 80 db(A) |
| Noise to Environment LwA* | 102 db(A) |
| PERFORMANCE | |
| Model Family | 18 M |
| Max. Lifting Capacity | 4200 kg |
| Max. Lifting Capacity at Full Height | 2500 kg* |
| Capacity at Max. Forward Reach | 850 kg* |
| Max. Lifting Height | 17.60 m |
| Max. Forward Reach | 13.15 m |
| Stabilizers | 2 Units in front |
| Chassis Levelling | ±10° |
| Max. Towable Trailer Weight (kg) (With/Without Brake)*** | 3000-14000 kg |

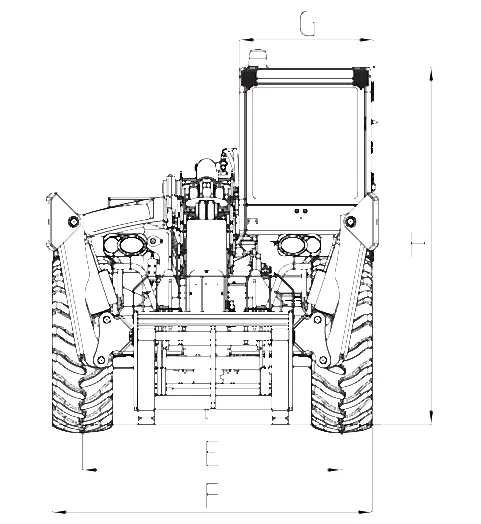

| DIMENSIONS | |
| A-Wheelbase | 3120 mm |
| B-Overall Lenght To Front Face of Tyres | 4950 mm |
| C-Overall Lenght To Carriage | 6360 mm |
| D-Ground Clearance | 400 mm |
| E-Inside Tyre Width | 1900 mm |
| F-Overall Width | 2350 mm |
| G-Overall Cab Width | 971 mm |
| H-Overall Height | 2590 mm |
| I-Tow Bar | --- |
| J- Turning Radius (Engine Hood) | 1810 mm |
| K- Turning Radius (Over Tires) | 4305 mm |
| Standard Forks *** | 120 x 50 x 1200 mm |
| Chassis Levelling | ±10° |
