Engine PERKINS 904D-E36TA
Displacement 3621 ccm
No. Of Cylinders 4
Torque Rating 424Nm@1200rpm
Steering Modes 2 WS, 4WS, 4WS-Crab
Emission Stage 5

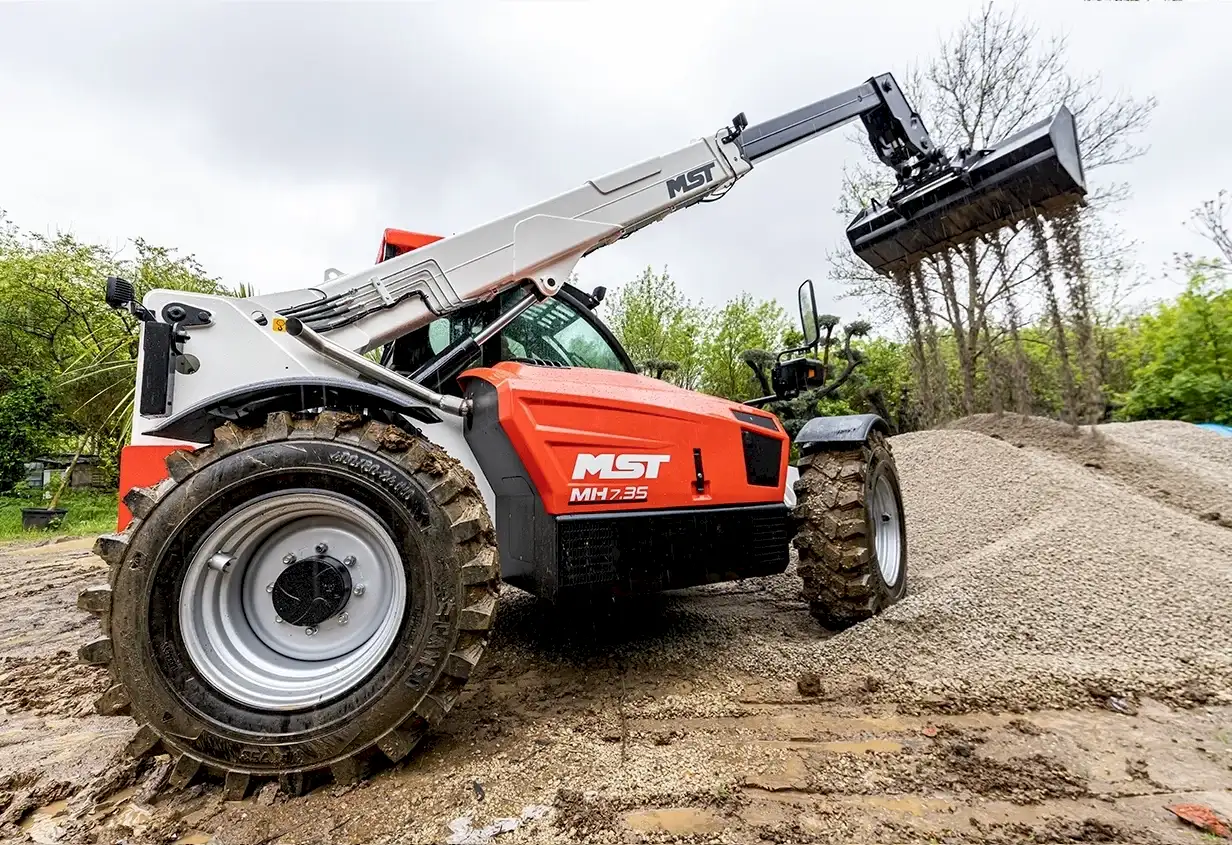

MST Telescopic Handler consisting of advanced technology and world-recognised components.
| ENGINE | ||
| Brand & Model | PERKINS 904D-E36TA @ Commonrail | PERKINS 904J-E36TA @ Commonrail |
| Emission | Stage 5 | Stage 5 |
| No. Of Cylinders | 4 | 4 |
| Displacement | 3621 ccm | 3621 ccm |
| Power Rating | 75 hp / 55,4kW @2300rpm | 100 hp / 74,4kW @2300rpm |
| Torque Rating | 424Nm@1200rpm | 430Nm@1500rpm |
| Aspiration | Commonrail with direct injection @ Turbocharged aftercooler | Commonrail with direct injection @ Turbocharged aftercooler |
| Cooling | Water cooled | Water cooled |
| TRANSMISSION | |
| Type Of Transmission | Hydrostatic transmission with variable piston pump @ 2-speed |
| Gearbox Speed (Fwd/Rvs) | 2/2 |
| Max. Travelling Speed | 35 km/h (75 kW)/30 km/h (55 kW) |
| Steering Modes | 2 WS, 4WS, 4WS-Crab |
| HYDRAULIC SYSTEM | |
| Hydraulic Pump | Load sensing type variable piston pump |
| Main Control Valve | Electro-hydraulic control |
| Max. Flow | 100 l/min |
| System Pressure | 240 bars |
| Joystick Control | 7 in 1 @ FNR & Gear up-down shift |
| FLUID CAPACITIES | |
| Fuel Tank | 120 l |
| Hydraulic Tank | 110 l |
| Standart Machine Operating Weight | 8.100 kg |
| CYCLE TIMES | |
| Lifting | 7.00 sec |
| Lowering | 5.60 sec |
| Extension | 8.50 sec |
| Retraction | 6.70 sec |
| Crowd | 3.00 sec |
| Dump | 2.80 sec |
| PERFORMANCE | |
| Model Family | 7 M |
| Max. Lifting Capacity | 3500 kg |
| Max. Lifting Capacity at Full Height | 2850 kg |
| Capacity at Max. Forward Reach | 1250 kg |
| Max. Lifting Height | 7.10 m |
| Max. Forward Reach | 4.15 m |
| Max. Towable Trailer Weight (kg) (With/Without Brake)*** | 3000-14000 kg |
| AXLES, BRAKE SYSTEM and TYRES | |
| Axles | LSD type rigid front axle & swinging type rear axle |
| Brake System | Front / Rearr multi- disc type oil bath & with inching |
| Parking Brake System | Negative parking brake (SAHR) |
| Tires | 400/80-24 |
| NOISE | |
| Noise at Driving Position LpA* | 80 db(A) |
| Noise to Environment LwA* | 102 db(A) |
| DIMENSIONS | |
| A-Wheelbase | 2800 mm |
| B-Overall Lenght To Front Face of Tyres | 4150 mm |
| C-Overall Lenght To Carriage | 4950 mm |
| D-Ground Clearance | 400 mm |
| E-Inside Tyre Width | 1930 mm |
| F-Overall Width | 2345 mm |
| G-Overall Cab Width | 971 mm |
| H-Overall Height | 2500 mm (w/o AC 2400 mm) |
| I-Tow Bar | 80 mm |
| J- Turning Radius (Engine Hood) | 1250 mm |
| K- Turning Radius (Over Tires) | 3800 mm |
| Standard Forks *** | 120 x 50 x 1200 mm |
